xrect

draw a rectangle

Syntax

xrect(x,y,w,h)
xrect(rect) // with rect =[x,y,w,h]
hdl = xrect(...)

Arguments

x,y,w,h

four real values defining the rectangle.

hdl

This optional output contains a handle to the created Rectangle entity. For a list of properties, see rectangle_properties.

Description

xrect draws a rectangle defined by [x,y,w,h] (upper-left point, width, height) in user coordinates.

Please note that height is positive downwards.
Created rectangle inherits the clip property from the current axes.

Examples

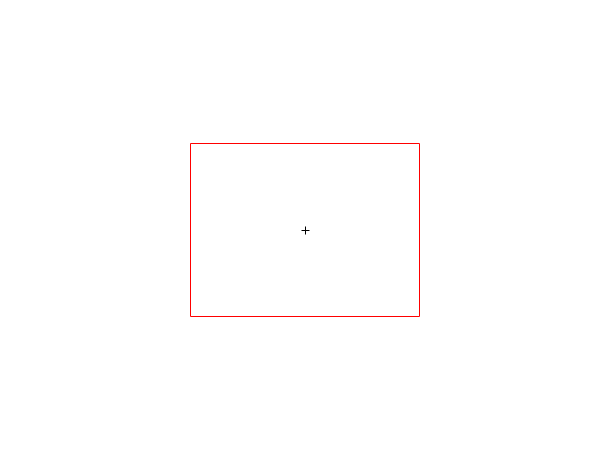

plot2d(0,0,-1,"010"," ",[-2,-2,2,2])
e = xrect(-1,1,2,2)
e.foreground = color("red");

See also

  • xfrect — fill a rectangle
  • xrects — draw or fill a set of rectangles

History

VersionDescription
2025.0.0 Function returns the created handle(s).
