CMSCOPE

Multi display scope in subplot(N,1)

Block Screenshot

Description

When you start a simulation, Xcos open Scope windows. The Scope block displays its input with respect to simulation time. The Scope block can have multiple axes (one per port); all axes have a common time range with independent y-axes. The Scope allows you to adjust the amount of time and the range of input values displayed.

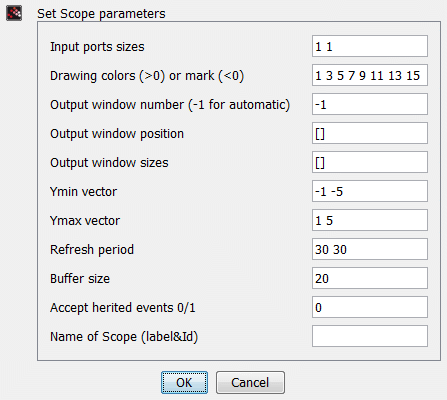

Parameters

  • Input ports sizes

    It allows multiple input ports.

    Properties : Type 'vec' of size -1

  • Drawing colors

    a vector of integers. The i-th element is the color number (≥ 0) or marker type (< 0) used to draw the evolution of the i-th input port signal. Seeplot2d for color (dash type) definitions.

    Properties : Type 'vec' of size -1

  • Output window number

    The number of graphic window used for the display. It is often good to use high values to avoid conflict with palettes and Super Block windows. If default value is used(1) , Xcos define the output window number.

    Properties : Type 'vec' of size 1

  • Output window position

    a 2 vector specifying the coordinates of the upper left corner of the graphic window. Answer [] for default window position.

    Properties : Type 'vec' of size -1

  • Output window sizes

    a 2 vector specifying the coordinates of the upper left corner of the graphic window. Answer [] for default window position.

    Properties : Type 'vec' of size size -1

  • Ymin vector

    Minimum values of the input; used to set up the Y-axis of the plot in the graphics window.

    Properties : Type 'vec' of size size(%1,'*')

  • Ymax vector

    Maximum values of the input; used to set up the Y-axis of the plot in the graphics window.

    Properties : Type 'vec' of size size(%1,'*')

  • Refresh period

    Maximum value on the X-axis (time). The plot is redrawn when time reaches a multiple of this value.

    Properties : Type 'vec' of size size(%1,'*')

  • Buffer size

    To improve efficiency it is possible to buffer the input data. The drawing is only done after eachBuffer size call to the block.

    Properties : Type 'vec' of size 1

  • Accept herited events 0/1

    if 0CSCOPE_f draws a new point only when an event occurs on its event input port. if 1CSCOPE_f draws a new point when an event occurs on its event input port and when it's regular input changes due to an event on an other upstream block (herited events).

    Properties : Type 'vec' of size 1

  • Name of Scope

    Name/label of the block.

    Properties : Type 'str' of size 1

Default properties

  • always active: no

  • direct-feedthrough: yes

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [1,1] / type 1

    - port 2 : size [1,1] / type 1

  • number/sizes of activation inputs: 1

  • number/sizes of activation outputs: 0

  • continuous-time state: no

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: cmscope

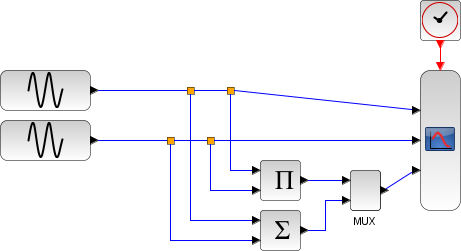

Example

Interfacing function

  • SCI/modules/scicos_blocks/macros/Sinks/CMSCOPE.sci

Computational function

  • SCI/modules/scicos_blocks/src/c/cmscope.c (Type 4)

See also

  • CSCOPE — Scope displaying a unique simple or multiplexed input in a single axes
  • CFSCOPE — Floating point scope
  • CSCOPXY — y = f(x) permanent viewer
  • CSCOPXY3D — z = f(x,y) permanent viewer
  • SCALE_CMSCOPE — Multi display scope with autoscale feature of graph
