datatipSetInterp

Set the interpolation mode for datatip.

Syntax

datatipSetInterp(datatip_handle,interp_mode)

Arguments

datatip_handle

A handle of the tip.

interp_mode

A boolean, if false the tips can only be located at the mesh points, if true interpolation is made between mesh points. The default value is true.

Description

Set the interpolation mode for tip location.

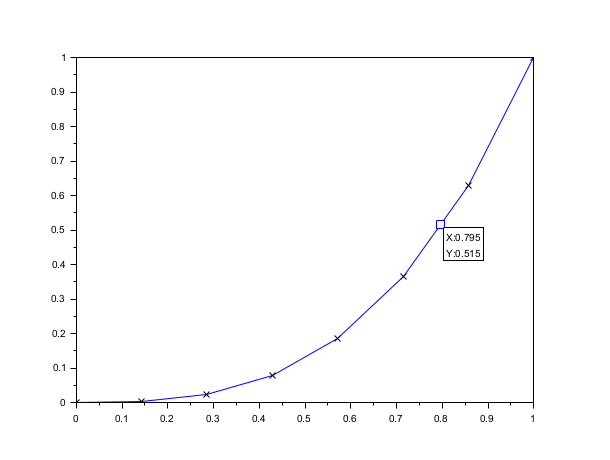

Examples

x=linspace(0,1,8)';
y=x.^3;
clf()
plot(x,y);
e=gce();p=e.children(1);//get the handle on the polyline
p.mark_mode="on";p.mark_style=2;p.mark_size=5;
t=datatipCreate(p,[0.8,0.512]);
datatipSetInterp(t,%f);//now move the datatip

See also

  • datatips — Tool for placing and editing tips along the plotted curves
  • datatipMove — Move a specified datatip using the mouse.
